ไฮไลท์

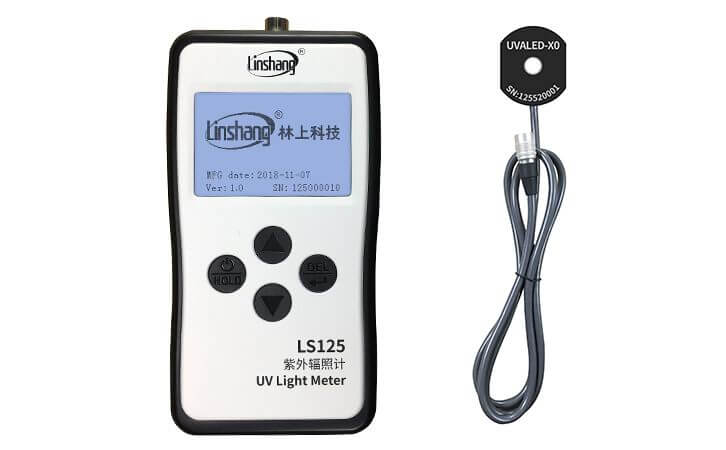

LS125 UV Light Meter+UVALED-X0 Probe
Suitable for UVA LED (365nm, 395nm, 405nm, etc.)
Spectral response: 340nm-420nm, calibrated at 395nm LED
Power measuring range: 0-20000mW/cm²
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
LS125 digital UV light meter is a smart host that can support 9 different types of probes. The main function of the host is data display.
The UVALED-X0 probe is one of 9 probes equipped with the LS125 host. The spectral response range of the probe is 340nm-420nm
and it is calibrated at 395nm, which is suitable for the intensity and energy detection of UVA LED light sources.



Spectral response : 340nm-420nm, calibrated with 395nm UV LED
Power measuring range : 0 - 20000mW / cm²
Resolution : 1mW / cm²
Energy measuring range : 0-9999999mJ/ cm²
Record time : 0-99999s
Measuring accuracy(H is the standard value) : H<50mW/cm²:±5mW/cm²

                                                                          H>=50mW/cm²:±10%H
Sampling speed : 2048 times/second
Unit : mW / cm²(default), W / cm², W / m²
Test Hole Diameter : Φ=10mm
Probe size : 39mm × 32mm × 15mm (L*W*H)

Compared with mercury lamps, UVA LED light sources have the characteristics of long service life, no heat radiation,
high energy, uniform irradiation. It is safer and more environmentally friendly. This kind of light source has been
widely used in UV ink curing, UV adhesive curing, PCB exposure, optical communications and many other industries.
For places that adopt UVA LED light source, they need to use LS125 UV light meter equipped with the UVALED-X0 probe
to detect the radiation intensity and energy of its light source.




Record energy value and power value together

The UV radiometer can measure energy value and power value at the same time. It also has a wealth of statistical functions, intelligent statistics of real-time power value, maximum value, minimum value, average value, measurement time, energy value





Three units can be changed freely

Three measurement units can be switched, namely mW/cm², W/cm², W/m².
Data conversion between different units does not require manual calculation.




LS125 UV Light Meter+UVALED-X0 Probe (Pre-Order)
