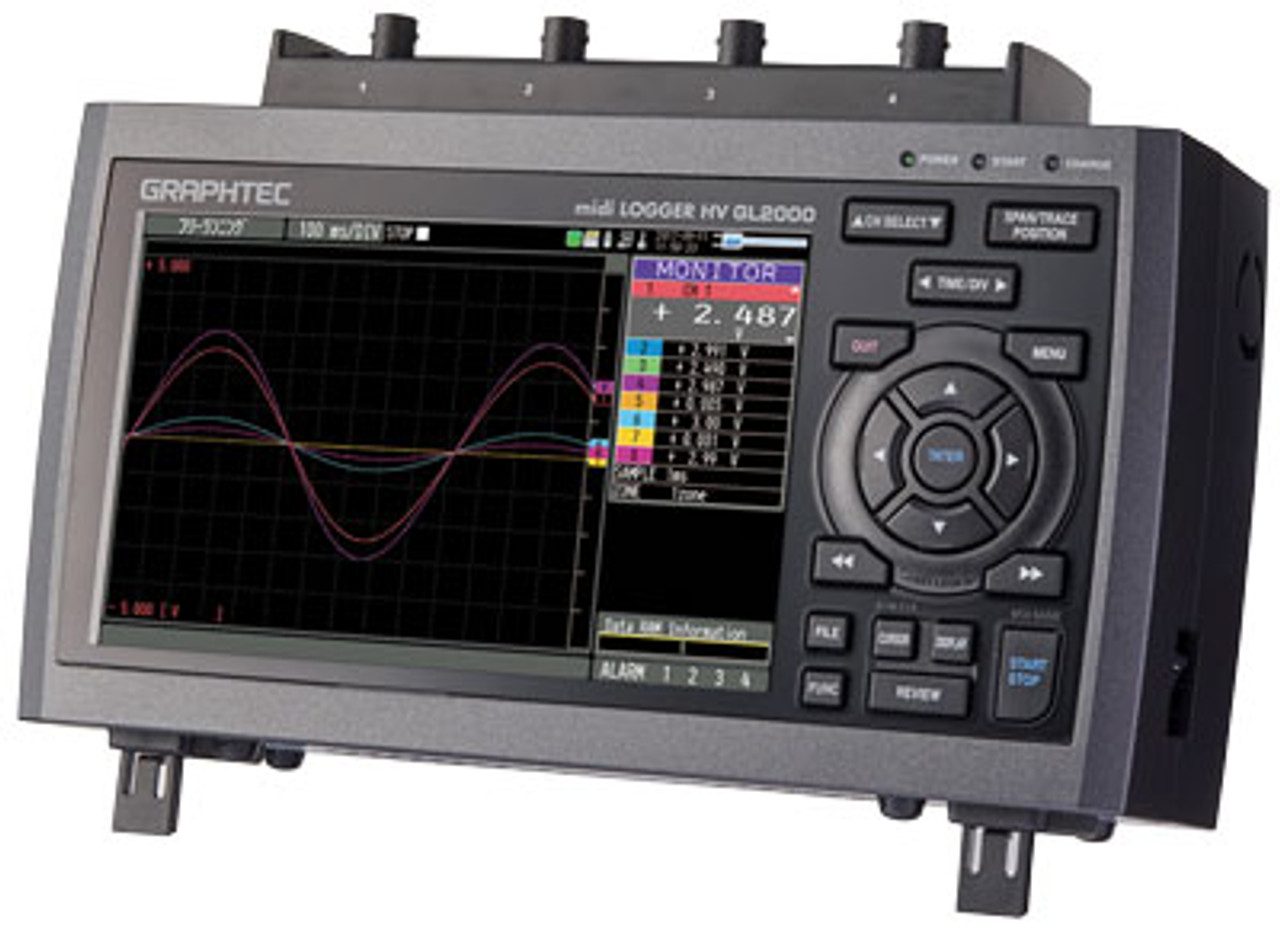

Graphtec High-speed High-Voltage Isolated 4 channel Data Logger midi LOGGER HV GL2000

Voltage : 20mV to 1000V DC, 1-5V DC
              10mV to 1000V rms
Temp : Thermocouples : K, J, E, T, R, S, B, N, W (WRe5-26)
Humidity : 0 to 100% (the B-530 option is required)
Pulse : 4 channels (*1) Accumulating, instant or RPM
Logic : 4 channels (*1)




Corresponds to CAT III 600V and 600V rms measurement
     Supports CAT III 600V measurement category and can measure voltage fluctuation on
power line for peak to peak and RMS measurements. Voltage range up to 1000V at DC and
rms value (*3)


Additional memory function

• Long term recording capability 4 M sample/ch built-in RAM and 4 GB built-in Flash memory. Continuous measurement support up to 4 GB per file.
• Large built-in RAM (4 million samples per channel)

         Built-in RAM can divide into 1, 2, 4, or 8 blocks supporting continuous high-speed
         recording measurement with auto backup on the internal Flash memory or USB.

• Dual external recording available though USB and SD Card Flash memory

         Both the USB Flash memory device and the SD Flash memory card can be used as
         external storage device for captured data.

High performance and easy to use software for PC
Standard software : GL980_2000-APS

• Easy connection made possible with automatic search function for connected device.
• Multiple display format using Y-T graph, X-Y graph and digital values.
• Supports real time data transfer up to 1 ms sampling interval.

         Captured data from the built-in RAM can also be displayed.

• Captured data saved in binary format can convert to CSV format.
